Heavy bag rail system
Heavy bag rail systems: wall-mounted, ceiling-suspended, gantry or central double, 4 to 12 bags made to measure
The essentials:4 rail systems to line up several punching bags and slide them along a rail on silent self-locking trolleys. Four mounting methods depending on the building: wall-mounted, ceiling-suspended, free-standing gantry or central double gantry. Load rating 200 to 300 kg per metre, powder-coated steel, colour of your choice. From 4 to 12 bags, 8 to 12 m spans and any bespoke configuration validated by our design office. Free standard shipping.
Planning a gym or a club fit-out? Esprit Boxe designs and adapts its rail systems to the constraints of your site and the space available. Send us your photos or your plans by e-mail and we will come back with the best configuration.
Request a quote🏗️ The building decides, not the budget
On a rail installation the first criterion is neither the number of bags nor the price: it is what your building can carry. A rail loaded with six heavy bags puts permanent forces into its supporting structure, and those forces rise the moment the bags are struck.
So the question to settle before any quote fits in one line: what do you have along the full span — a load-bearing wall, a concrete slab underfoot, or a concrete slab and beams overhead? Each of those three answers leads to a different system, and only one.
It also explains the price gap between models. The wall-mounted rail is the most accessible because it leans on a structure that already exists. The gantry rail costs more because it brings its own supporting structure and needs nothing from the building.
🔍 The four systems
| System | Mounting | What it asks of the building | Capacity | Load |
|---|---|---|---|---|
| wall-mounted rail | Spaced wall brackets carrying the rail | A load-bearing wall in concrete or solid block along the full span | 4 to 8 bags | 200 kg/m |
| ceiling-suspended rail | Bespoke droppers and plates under the slab | A concrete slab or beams overhead | 4 to 8 bags | 200 kg/m |

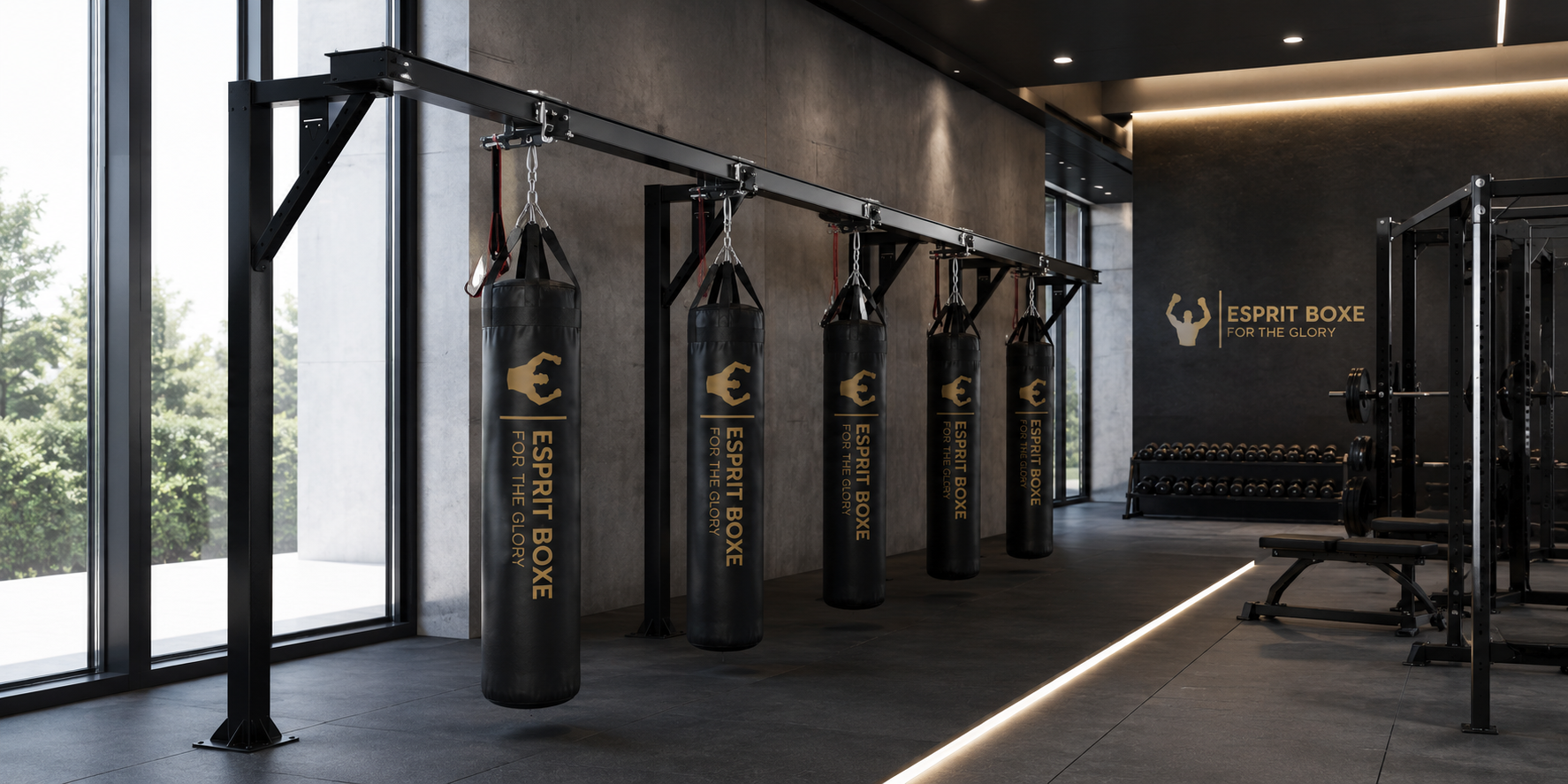

| free-standing gantry rail | Gantries anchored to the floor on base plates | A concrete floor slab, no wall needed | 4 to 8 bags | 300 kg/m |
| central double gantry | Central row of gantries, twin rails | A concrete floor slab, mid-room | 8 to 12 bags | 300 kg/m |
🧭 Which system for your gym
| Your situation | The system | Why |
|---|---|---|
| A long load-bearing wall available | wall-mounted rail | Leans on an existing structure, floor stays completely clear |
| Concrete ceiling, floor to be kept free | ceiling-suspended rail | No posts, no floor footprint, full circulation under the bags |
| Weak walls, cladding, industrial unit | free-standing gantry rail | Self-supporting structure anchored into the concrete slab |
| Large room, maximum capacity | central double gantry | Two rails on a single row of posts, bags reachable from both faces |
| A single bag to hang | punching bag wall mounts | One fixed anchor point is enough, no rail structure needed |
⚙️ What a self-locking trolley does
This is the part that separates a rail system from a plain beam. Each bag hangs from a trolley that rolls along the rail. A pull tab locks or releases it in one movement: group the bags at one end to free the floor between classes, spread them out for training.
The second issue is noise. In a gym, the racket from a multi-bag installation comes from play between metal parts, not from the bags themselves. The trolleys fitted to these rails are built to cut those friction points — hence the silent rating that appears on all four systems.
📐 Spans, capacity and bespoke builds
Three standard spans structure the range: 8 m, 10 m and 12 m, giving 4, 6 and 8 bags on a single rail, and 2×4 to 2×6 on the central double. That works out at roughly one bag every two metres, the spacing that lets two people work side by side without clashing.
Any other configuration is possible: intermediate span, different bag count, change of direction, storage zone at the end of the run. Every project is validated by our design office before fabrication, and structure colours are your choice.
🔩 What to check before ordering
The substrate first: concrete or solid block for the wall-mounted rail, concrete slab or beam for the suspended one, concrete floor slab for both gantry systems. Plasterboard, hollow brick and stud partitions are ruled out, without exception, on an installation of this scale.
Height next: the gantry systems stand 273 cm tall, which assumes clear headroom above that mark along the whole span. Finally, site access — moving and installing a 12 m rail needs room to manoeuvre, to be flagged at quotation stage.
🥊 Fitting out the installation
A rail is ordered together with the bags that will hang from it: see our punching bags, from heavy bags to uppercut bags. To absorb impact underneath and protect the walls, mats and wall padding. For a single station rather than a line of bags, punching bag wall mounts and free-standing bag frames cover one-bag installations. And to complete a gym, boxing rings and boxing gloves.
Planning a gym or a club fit-out? Esprit Boxe designs and adapts its rail systems to the constraints of your site and the space available. Send us your photos or your plans by e-mail and we will come back with the best configuration.
Request a quote❓ Frequently asked questions
What is a heavy bag rail system?
A load-bearing rail on which each bag hangs from a sliding trolley. Bags move along the rail and lock with a pull tab: group them to clear the floor, spread them out for training. It is the standard solution for clubs and shared halls, sometimes called a punch bag rail or a bag sliding rail.
What is the difference between a wall bracket and a rail system?
A bracket hangs one bag from a fixed point. A rail carries several bags on moving trolleys, 4 to 12 depending on the system. For a single bag, punching bag wall mounts are enough.
How many bags fit on one rail?
4, 6 or 8 bags on a single rail, over 8, 10 or 12 m. Up to 12 bags on the central double gantry, which carries two rails on one row of posts. Any intermediate configuration can be built to measure.
What load does a heavy bag rail take?
200 kg per metre on the wall-mounted and suspended rails, 300 kg per metre on the gantry systems. That is the rail's rated load, not the weight of a single bag.
Can a rail be installed without a load-bearing wall?
Yes. The free-standing gantry rail brings its own structure: gantries anchored to a concrete slab, with no wall fixing at all. That is the answer in clad units or where the walls cannot take the load. The ceiling-suspended rail is the other route, if the ceiling is concrete.
How does a bespoke order work?
Send the photos and plans of your gym to info@esprit-boxe.com, with the span available, the nature of the substrate and the number of bags you want. Our design office validates the configuration, then fabrication starts. Free standard shipping.
